Overview

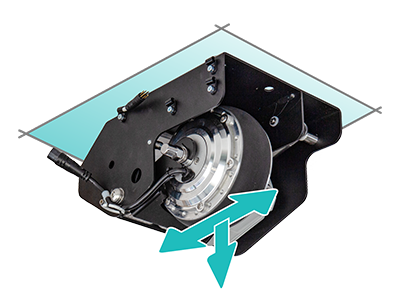

The esense Up drive wheel provides intuitive forward and backward electric drive support when engaged and can be retracted when drive support is not required. This combines powered linear movement with unrestricted manual maneuverability, giving users the flexibility to switch between powered and manual movement.
Best suited for:
Thorstein Selmer
International account manager
Unlike a permanently engaged drive wheel, the Up drive can be retracted when powered movement is not required. This flexible configuration combines powered linear movement with unrestricted manual maneuverability.
The Up drive wheel is typically integrated as a 5th wheel, centrally between four swivel wheels. When engaged, it provides powered forward and backward movement; when retracted, the swivel wheels allow unrestricted manual maneuvering.
Discover integration possibilities in your product

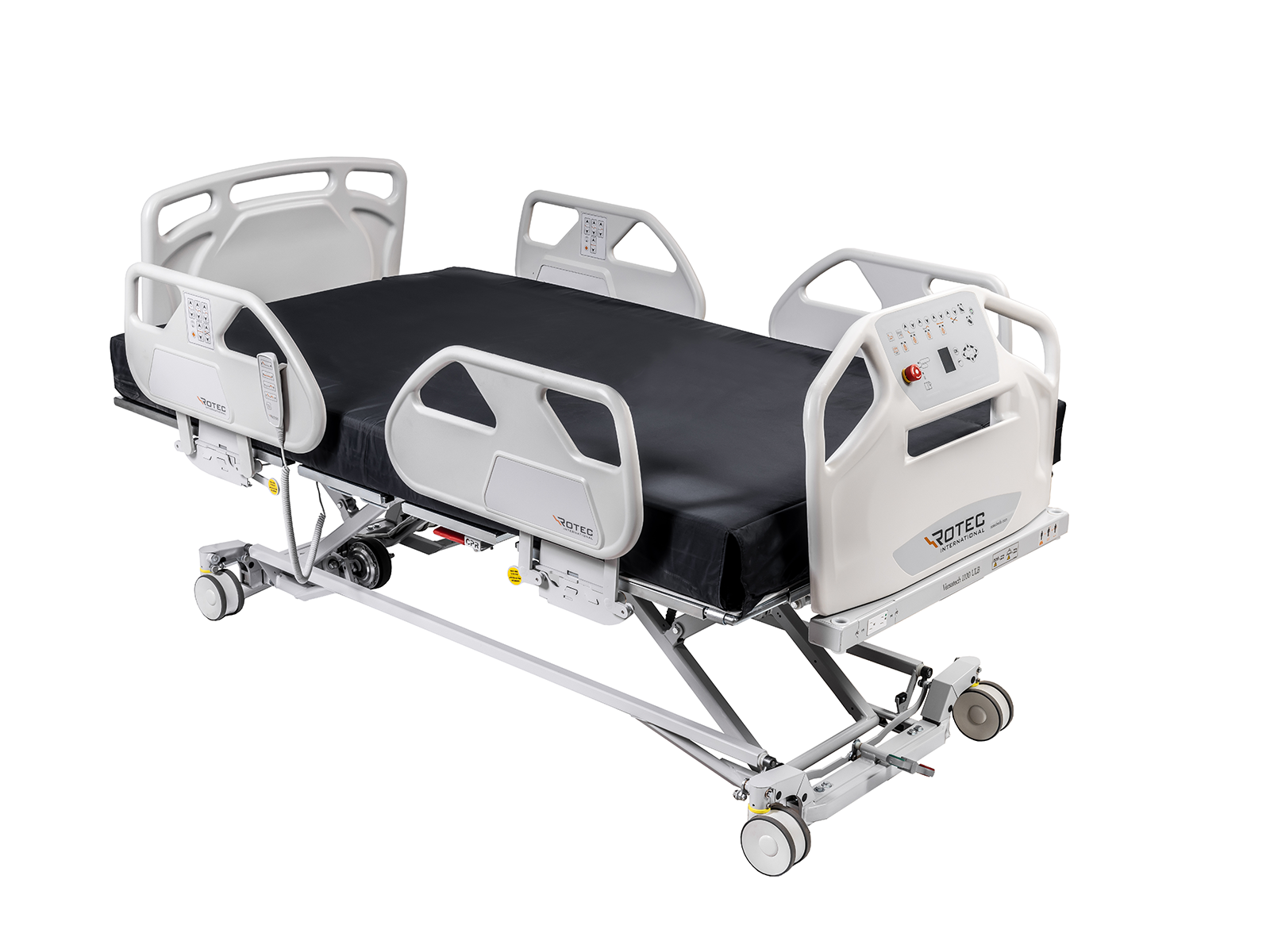

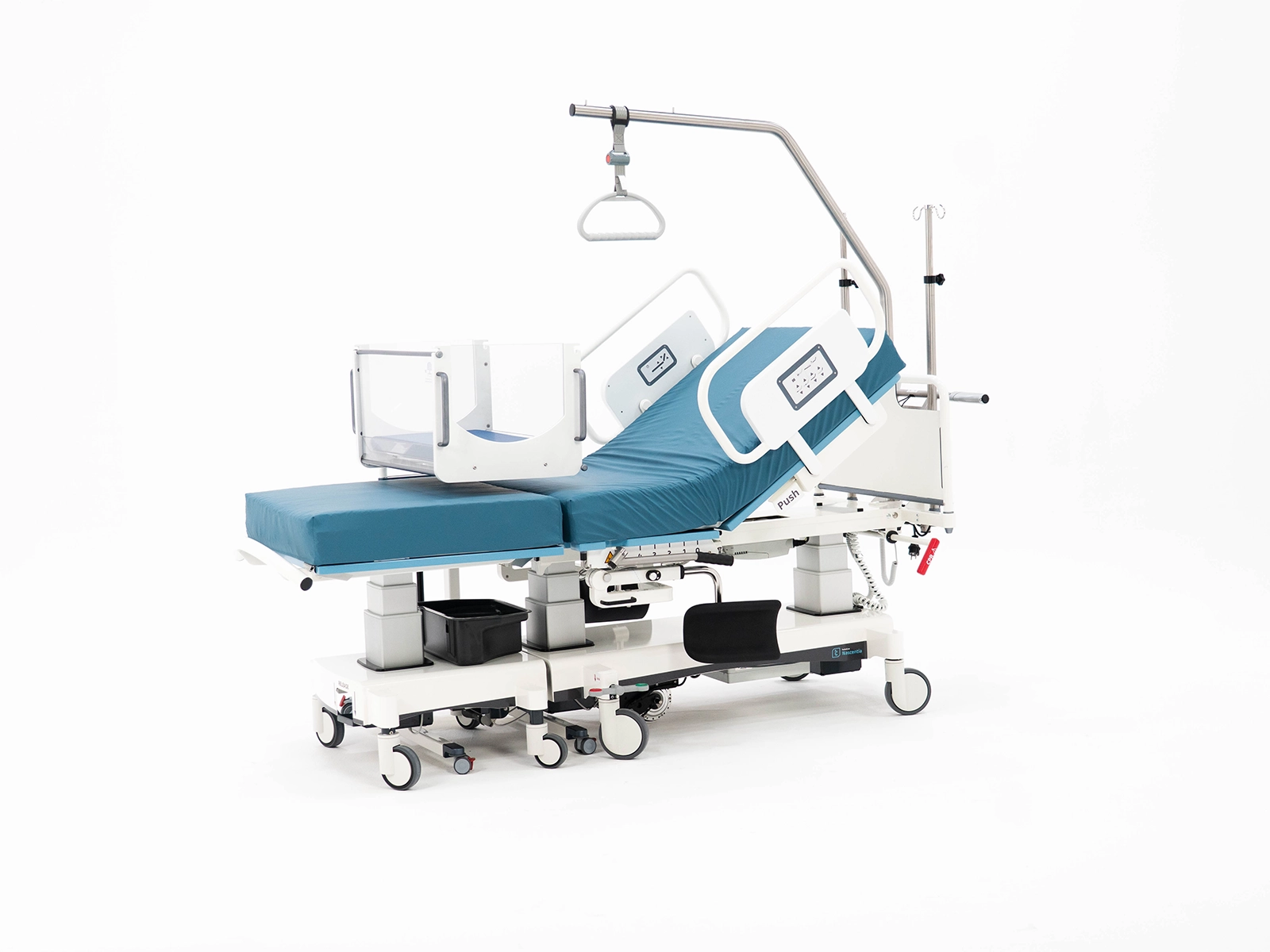

The Up drive wheel has been successfully integrated into a wide range of mobile equipment, including:
See more esense drive references
Different applications require different types of movement. Discover the full esense drive wheel range and find the solution that best fits your product:
Components
Specifications
| Use environment | Indoor use |
| Drive unit installation height | 200 mm |
| Control | Force sensitive sensors |
| Max. assisted speed | Up to 6 km/h |
| Max. weight on horizontal surface | Up to 600 kg |
| Max. weight on slopes | Up to 450 kg |
| Max. slope angle | 6° |
| Braking | Automatic brake at release of trolley |
| Protection rating | Up to IPx4 |
| Input power | 24V DC |
| Battery capacity | 3.8 Ah, 9 Ah or own battery |
| Certification | Prepared for integration on 60601-1 certified products |
